Are incorrect Solar Cables Killing Your Battery Life?

When designing an off-grid solar power system, every component and detail plays a critical role in ensuring efficiency, performance, and reliability.

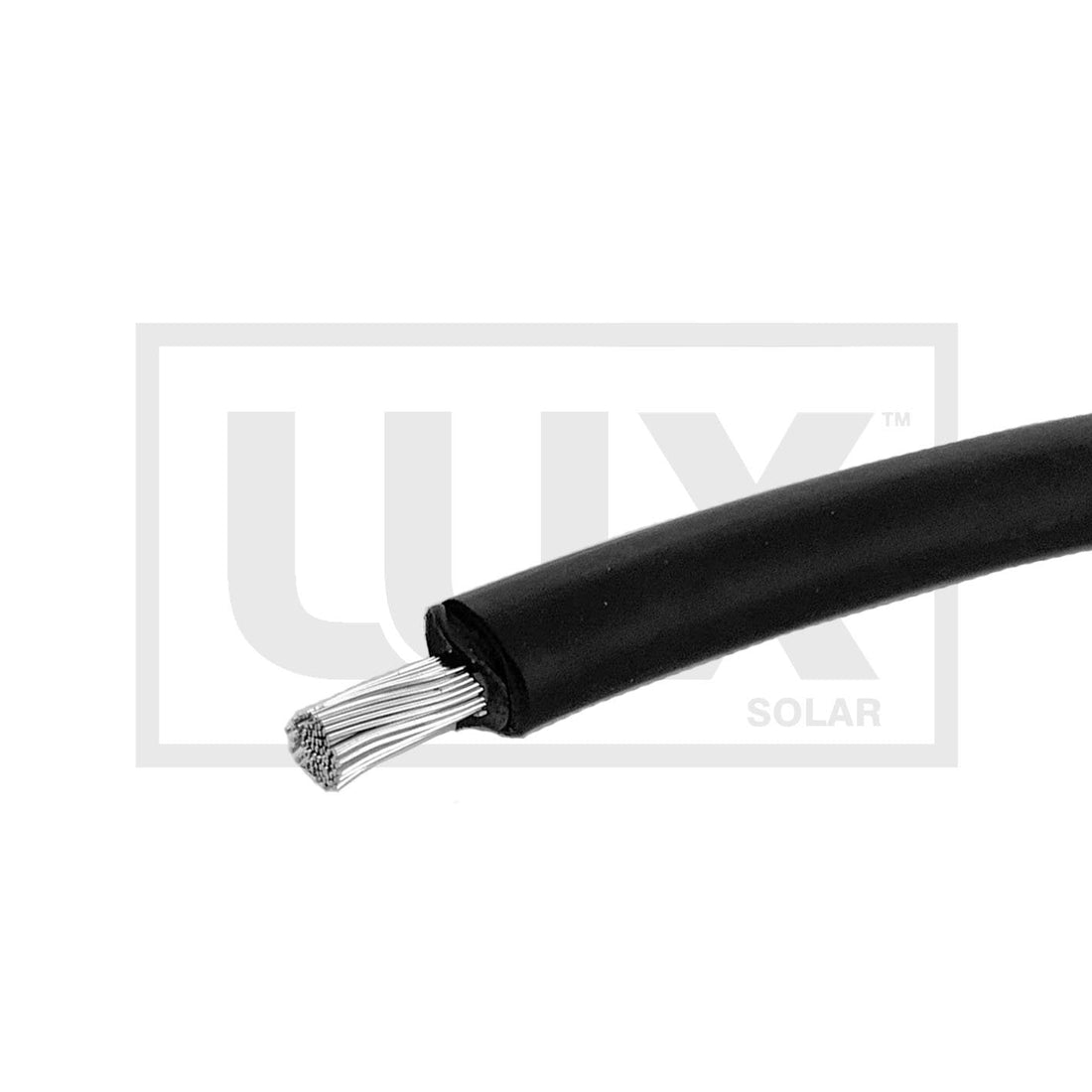

Why Cable Length Matters in Off-Grid Solar

1. Voltage Drop

Voltage drop occurs when electrical energy is lost as current flows through a cable. The longer the cable and the thinner the wires, the more resistance the electricity encounters, resulting in greater voltage drops. This is especially important for the cable from the charge controller to the battery. Incorrectly sized cables can lead to the following problems:

• Reduced Charging Efficiency: The solar charge controller manages the exact voltage sent to the battery to maximize charging efficiency. A significant voltage drop caused by a long cable can make it impossible for the controller to properly charge the battery, especially in 12V or 24V systems. This can lead to undercharged batteries and reduced system performance.
• Potential Battery Damage: An inefficient charge due to voltage drop may cause your battery to never fully charge, leading to sulfation in lead-acid batteries or incorrect charging in lithium batteries, both of which shorten battery life.

2. Increased Power Loss

Longer cables also result in increased energy losses in the form of heat. The higher the resistance in the wire, the more power is wasted during the transfer of energy between components.

In a mobile off-grid setup, every watt counts because you typically have limited energy generation (dependent on factors like solar daylight hours and panel size).

3. Proper Current Handling and Safety

Longer cables often necessitate thicker wires to safely handle the electrical current and minimize resistance. However, using overly long and thick cables can increase the cost, weight, and complexity of your setup. On the other hand, undersized wires on longer runs can lead to overheating, which is not only inefficient but also a potential fire hazard.

Top 3 Tips and Tricks

To optimize your off-grid solar system and maintain safety, here are the key factors you should consider in relation to battery-to-controller cable length:

1. Keep Cables Short

In off-grid solar systems, cables are rated based on their ability to carry current (amperes) without excessive energy loss. The longer the cable run, the thicker (lower gauge number) the wire needs to be to handle the same current efficiently. By keeping the cable short, you can reduce the need for unnecessarily thick and expensive wiring.

2. Keep Your Battery Close to Your Charge Controller

Whenever possible, install your battery as close to the charge controller as the physical layout of your caravan allows. This reduces resistance and minimizes voltage loss. A practical length guideline is to keep the battery-to-controller cable under 1 or 2 metres.

3. Consider Your System Voltage

Lower-voltage systems (such as 12V) are more sensitive to voltage drops than higher-voltage systems (such as 24V or 48V). If your system is 12V (a common configuration for caravans), the importance of short cables becomes even more critical.

Designing Your Cable Layout

1. Plan the Layout Carefully: Before installing your off-grid solar system, map out the locations of each component. Place the charge controller and battery in close proximity to minimize the cable length while ensuring proper ventilation and safety.
2. Use the Correct Cable Gauge: Refer to the manufacturer’s recommendations for cable size thickness based on your system’s voltage and current. Even with short cables, using undersized wires can lead to inefficiency and safety risks.
3. Check Connections Regularly: Over time, wiring connections may loosen due to vibrations in the caravan while traveling. Inspect and tighten connections periodically to avoid energy loss, arcing, or overheating.
4. Minimize Bends and Turns: Excessive loops, bends, or winding of the cables can increase resistance. Aim to create a direct, simple path for your cable to run from the charge controller to the battery.
5. Protect Against Environmental Factors: Use quality, weather-resistant cables and conduits to protect the wiring from heat, moisture, and physical wear, as caravans are subject to dynamic environments.

Conclusion

In an off-grid solar system for caravans, small details like the length of the battery-to-controller cable can make a big difference. By keeping this cable short, you can mitigate voltage drop, improve charging efficiency, reduce power loss, and ensure the safety and longevity of your setup. With careful planning and adherence to best practices, you’ll enjoy a reliable, efficient solar power system that keeps your caravan running smoothly no matter where your adventures take you.
