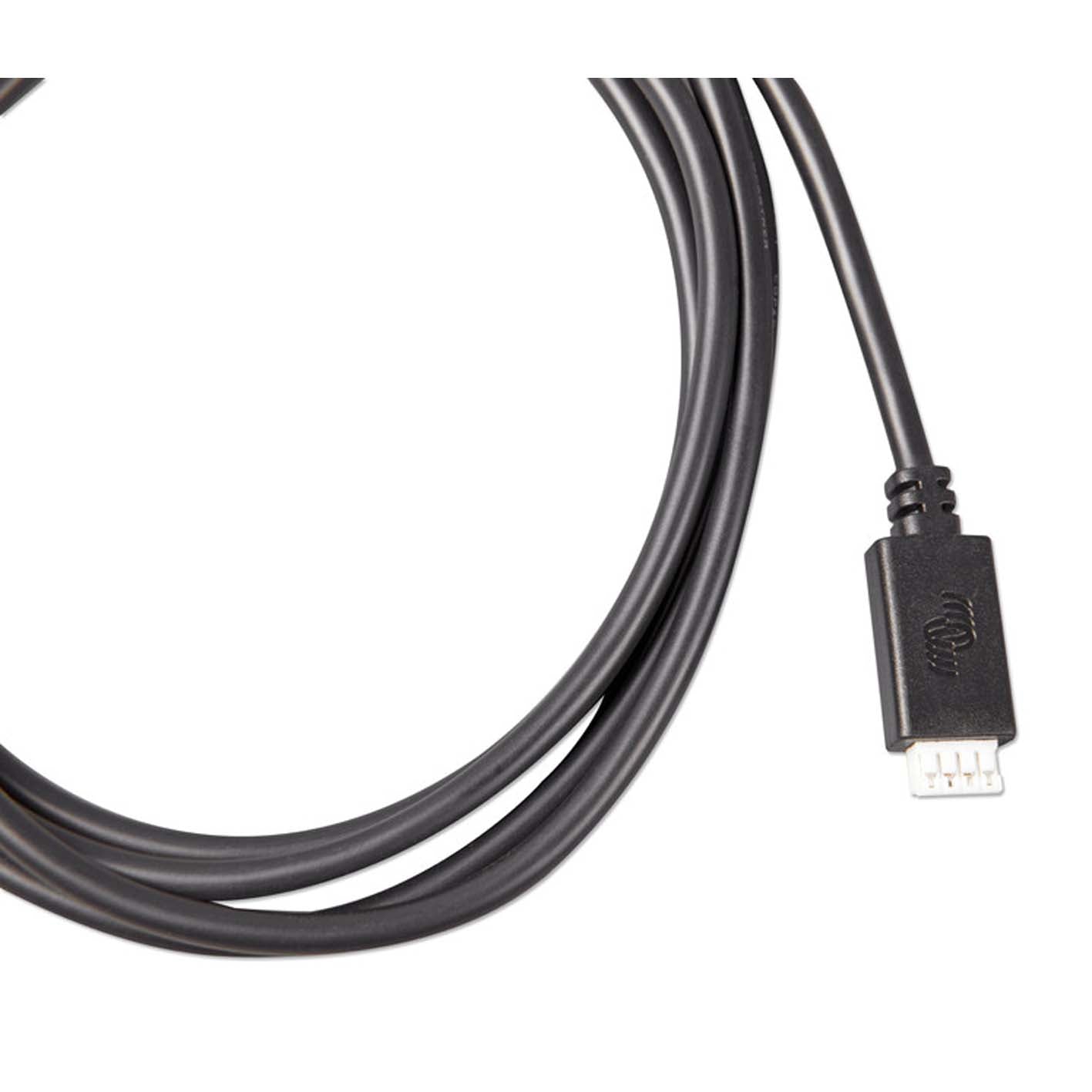

VE.Direct TX digital output cable (PWM light dimming cable)
VE.Direct TX digital output cable (PWM light dimming cable)
SKU:ASS030550500
Regular price
$19.99 NZD
Regular price
$20.99 NZD
Sale price
$19.99 NZD
Unit price
per
Shipping $ & Timeframe
Shipping $ & Timeframe
Free Shipping New Zealand wide.
Orders are shipped Mondays to Fridays and take 1-3 working days to arrive. Orders received before 11am will ship same day.
Warranty & Returns
Warranty & Returns
5 Year Warranty
We have a 7 day change of mind return policy, subject to a restocking fee.
Datasheets, Manuals, Certifications
Datasheets, Manuals, Certifications
VE.Direct TX Digital Output Cable
The VE.Direct TX digital output cable can be used in combination with the BlueSolar and SmartSolar MPPT chargers. It supports the following applications:
Lighting Applications
The cable is designed for lighting applications in solar energy systems. Energy consumption can be significantly reduced by the ability to dim lighting when needed. Lower power consumption will reduce the overall system cost. Also, the availability of the lighting will increase, even in the case of a partially charged battery in low sun.
The cable connects the TX output of the VE.Direct connector of an MPPT charger with the PWM dimmer input of the LED driver.
Virtual Load Output
The cable is designed for adding load output functionality to the larger MPPT chargers (MPPT 100/30 and larger) that do not have a load output. The cable connects the TX output of the VE.Direct connector of an MPPT charger with a battery protect or a solid-state relay to switch a load on or off.
View full details
The VE.Direct TX digital output cable can be used in combination with the BlueSolar and SmartSolar MPPT chargers. It supports the following applications:
Lighting Applications
The cable is designed for lighting applications in solar energy systems. Energy consumption can be significantly reduced by the ability to dim lighting when needed. Lower power consumption will reduce the overall system cost. Also, the availability of the lighting will increase, even in the case of a partially charged battery in low sun.
The cable connects the TX output of the VE.Direct connector of an MPPT charger with the PWM dimmer input of the LED driver.
Virtual Load Output
The cable is designed for adding load output functionality to the larger MPPT chargers (MPPT 100/30 and larger) that do not have a load output. The cable connects the TX output of the VE.Direct connector of an MPPT charger with a battery protect or a solid-state relay to switch a load on or off.
