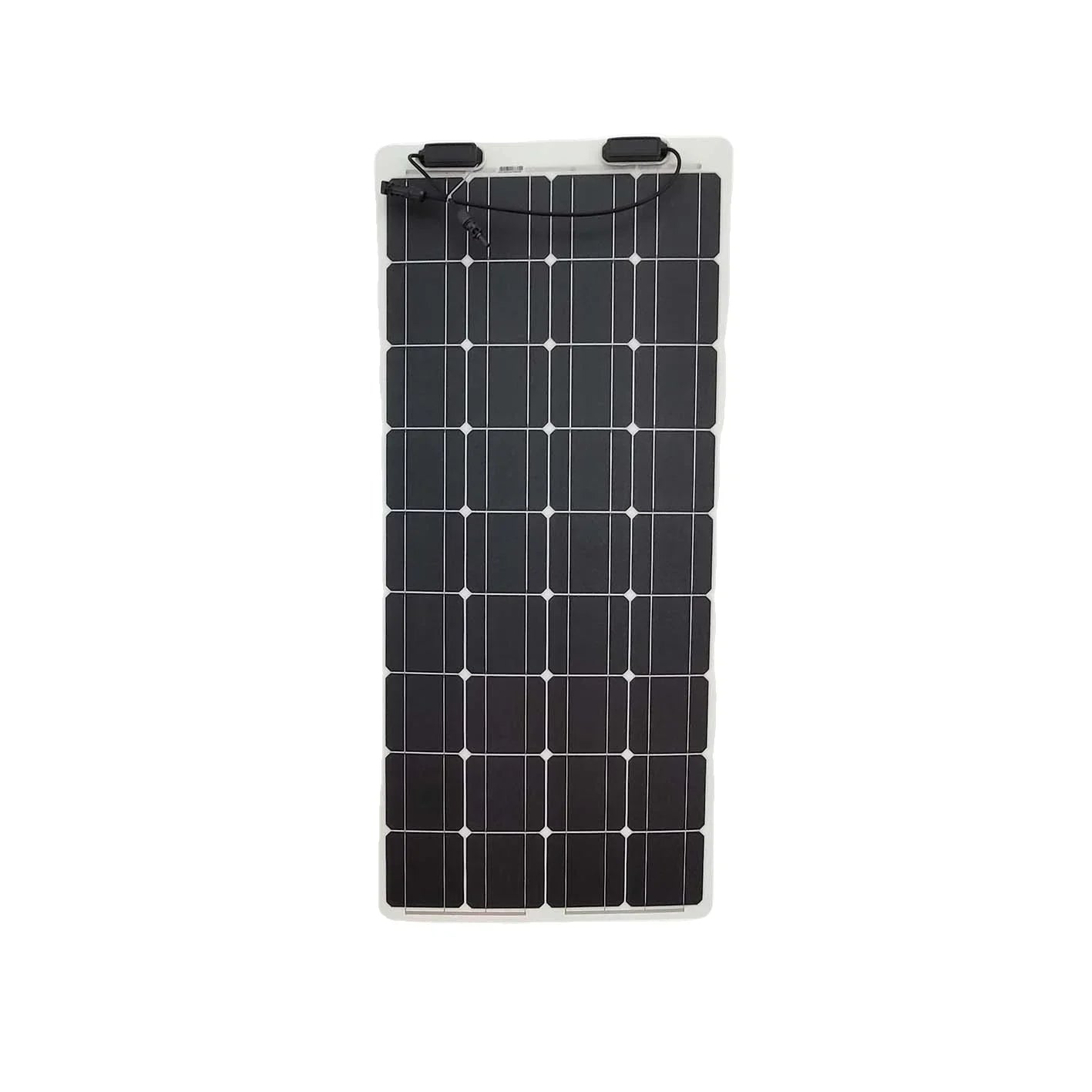

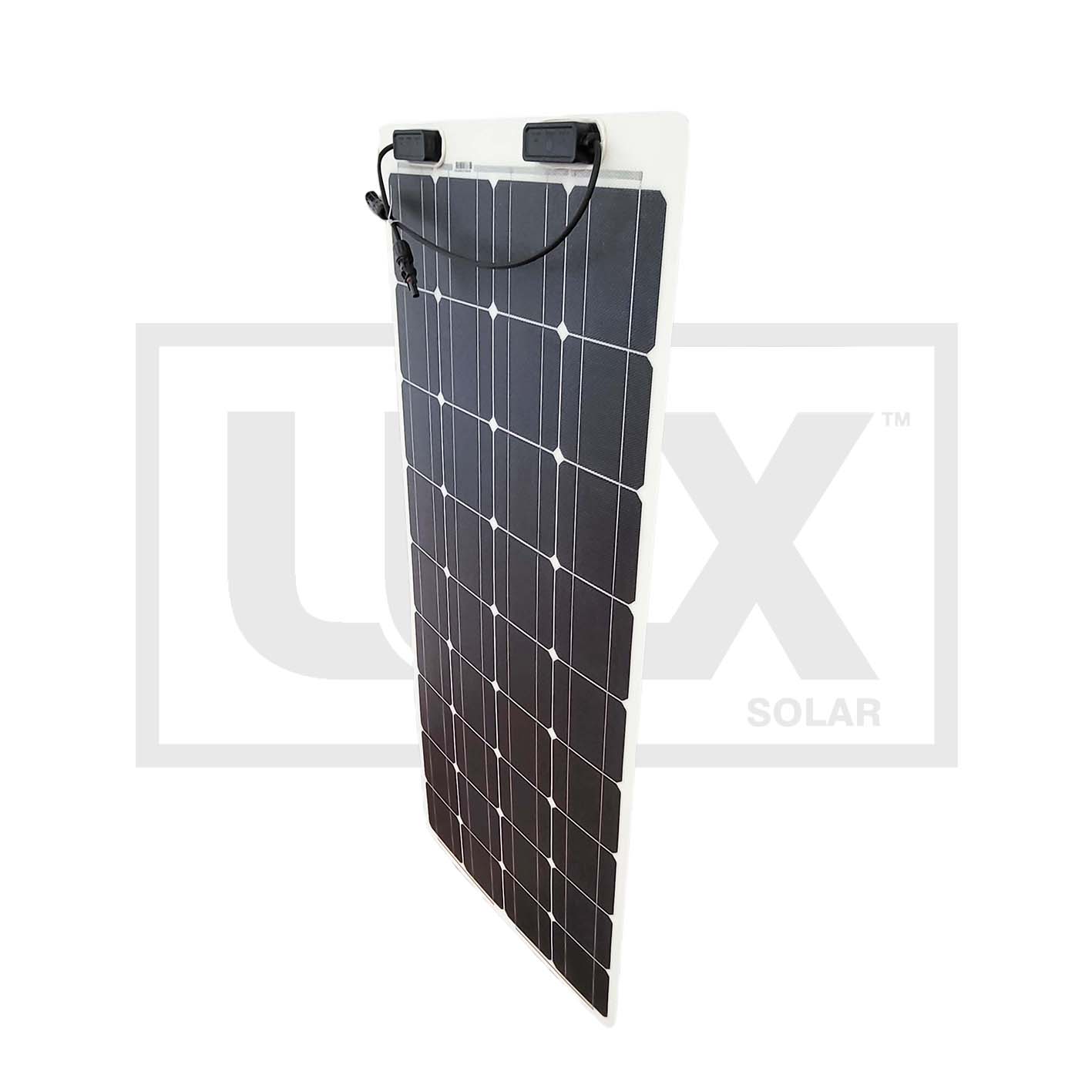

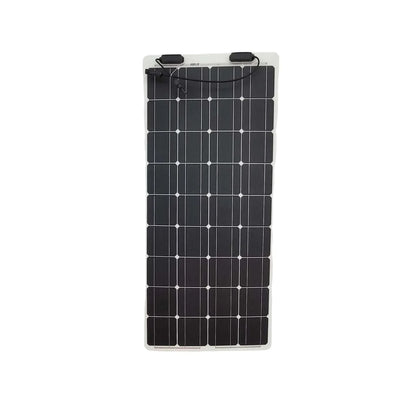

100 Watt Sunman Flexible Solar Panel (5 Year Warranty Mono EARC®)

100 Watt Sunman Flexible Solar Panel (5 Year Warranty Mono EARC®)

SMF100S-4X09uw

$329.00 NZD
$419.99 NZD $329.00 NZD
Sale Sold out

Shipping

Panels and Kits ship from $0 (Auckland central) to $29.99 (rural South Island). Adding a Battery increases shipping costs due to heavy and dangerous goods classification.

Orders are shipped Mondays to Fridays and take on average 1-3 working days to arrive.

Orders received before midday will be shipped same day.

Click and Collect (Panmure, Auckland)

  • This item is available for click and collect from our Auckland Warehouse, in Panmure.

Warranty & Returns

Five Years

We have a 7 day change of mind return policy, subject to a restocking fee.

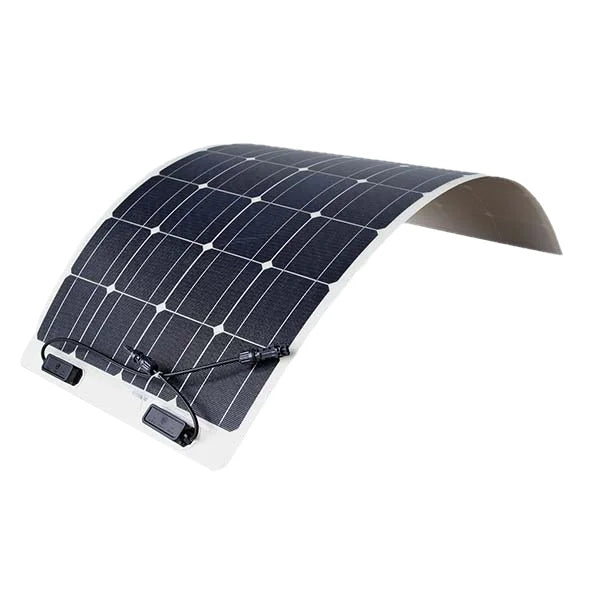

Sunman eArc® panels are some of the most most reliable flexi panels in the market - and they are certified to all the same specifications as a framed panel.  They are perfect for boating, caravan and camping applications.

Certifications include:

  • IEC 61215-1:2016
  • IEC 61215-1-1:2016
  • IEC 61215-2:2016
  • IEC 61730-1:2016
  • IEC 61730-2:2016

The junction box are IP68 certified with MC4 solar connectors.

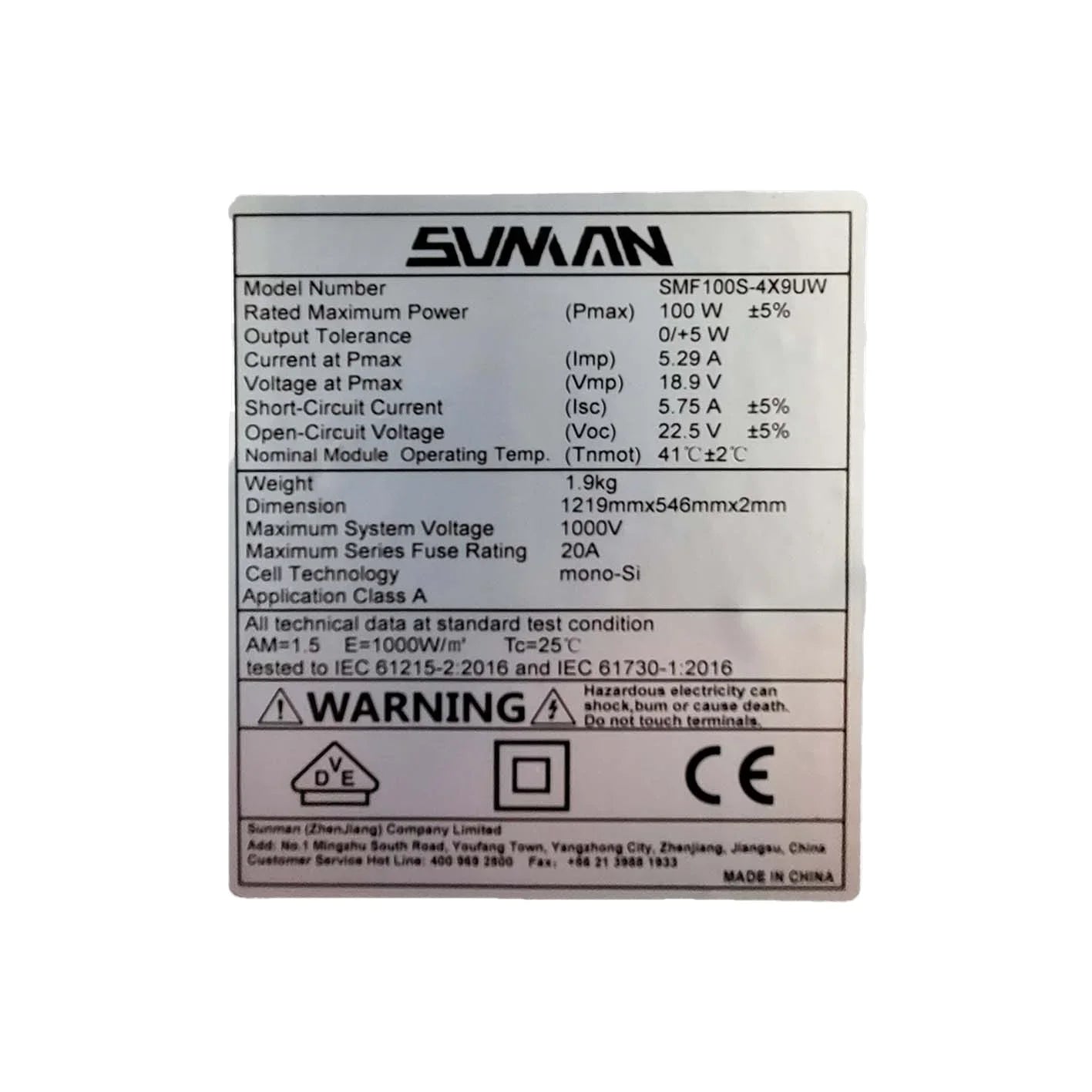

Specifications: 100 Watt 175 Watt
Power (W) 100 175
Vmp (V) 18.9
 19.5
Imp (A) 5.29
 8.98
Voc (V) 22.5
 23.9
Isc (A) 5.75
 9.5
Weight (kg) 2 3
Size (mm) 1219 x 546 x 2 1504 x 673 x 2
Warranty  5 Years 5 Years


What is eArc?

eArc is the world's first glassless solar module. An innovation combining proven crystalline silicon solar cells with patented composite material, eArc has the same durability and robustness of conventional glass modules. However, unlike glass, eArc resembles a flexible"solar skin", 70% lighter and up to 95% thinner.

If you would like to know the power requirements for your marine solar system or your rv solar system please contact us, use our LUX Solar calculator or read through our knowledge articles.

eARC

eArc is the world's first glassless solar module. An innovation combining proven crystalline silicon solar cells with patented composite material, eArc has the same durability and robustness of conventional glass modules. However, unlike glass, eArc resembles a flexible"solar skin", 70% lighter and up to 95% thinner.

Monocrystalline

At LUX Solar we only source monocrystalline panels as they offer the highest efficiency. Monocrystalline panels are manufactured from a single rod of silicon thus the crystal structure inside the silicon is uniform, with very few impurities. Polycrystalline panels on the other hand are made up of smaller crystal structures that introduce grain boundaries in each solar cell. This causes inefficiencies in the conduction of electrons due to defects associated with the crystal boundary.
